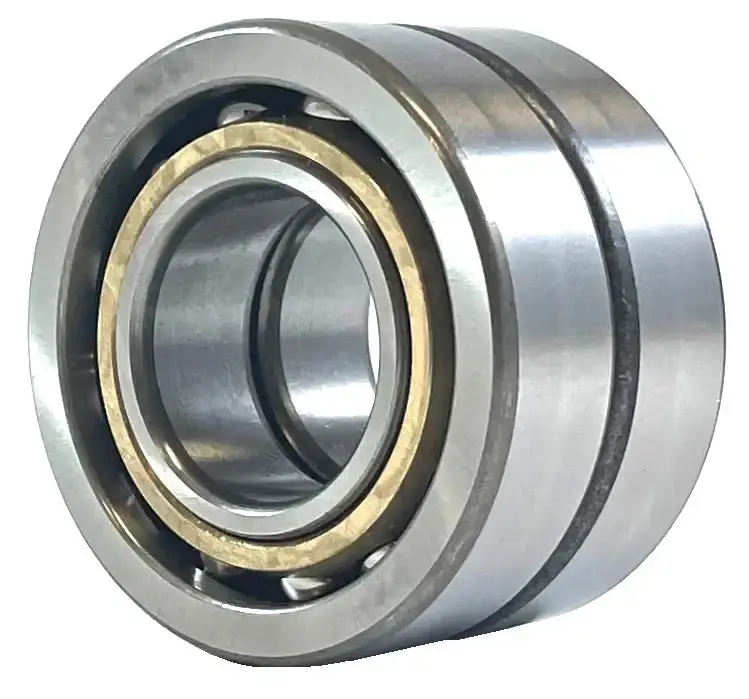

7205Bua Angular Contact Ball Bearing Pair – 25×52×30 Mm Precision Set

Description

This 7205-BUA bearing is a high-precision 45-degree 25x52x30 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer races. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7205-BUA bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 5 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7205-BUA bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team, and we will be happy to assist you!

7205-BUA Bearing Dimensions

• Bearing Size:7205-BUA
• Dimension (d): 25mm
• Dimension (D): 52mm
• Dimension (B): 30mm
• Dynamic Load Rating: 5110 LBS
• Static Load Rating: 3920 LBS
• Limiting Speed (Grease): 9200 RPM
• Limiting Speed (OIL): 12000 RPM
